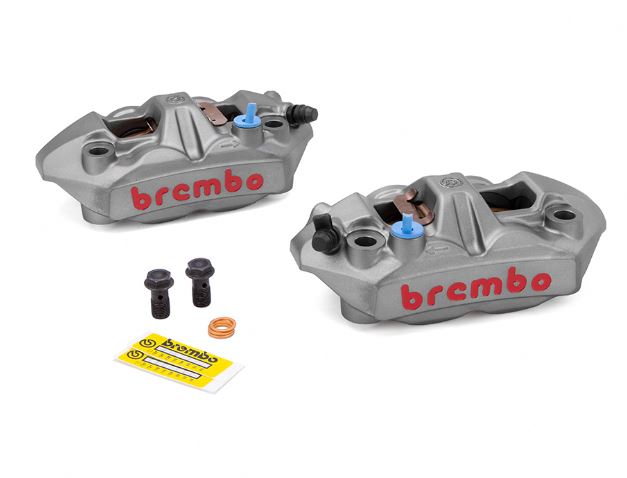

Brembo High Performance M4 Monoblock Front Brake Caliper Kit - 108mm Radial Mount

Universal Fits
Brembo220A39710
filler

Price:
$1,300
Availability:
Require 2-3 business days processing prior to shipping

Brembo High Performance M4 Monoblock Front Brake Caliper Kit - 108mm Radial Mount

This monoblock caliper, obtained from a single piece of cast aluminium, is made with the most advanced casting and machining technologies in order to obtain a solid caliper body which is ultra light and has excellent stiffness and precision operating values. The hydraulics were given particular attention, as was the shape of the caliper body, both of which were the focus of technical fine-tuning. The caliper body, which houses four 34 mm diameter pistons, is characterised by significant stiffness values which are obtained thanks to the peculiarity of the triple bridge shape.

With these cast monoblock calipers Brembo makes the technology which has been successfully employed in MotoGP available to all enthusiasts. This is technology which allows the caliper body to be obtained from a single piece of cast aluminium, thereby guaranteeing optimum stiffness.

The surface finish is anodised in titanium colour. The product is provided in a kit made up of two calipers and sintered brake pads which represent the absolute best quality available on the market today.

Features:

  • M4 Cast Monoblock Caliper
  • 108mm mount spacing
  • 34mm / 34mm aluminum pistons & steel hardware
  • Weight: 1000 grams (with brake pads)
  • 22.50mm offset
  • Direct bolt-on upgrade, screws and spacers included

Technical Specifications

  • Position: Front
  • Caliper Body: Monoblock
  • Ficing: Radial
  • Number of Pistons: 4
  • Piston Diameter: 34mm
  • Disc Height: 32-34mm
  • Material: Cast Aluminum
  • Finishing: Titanium Anodizing
  • Bridges: 3
  • Hardware: Steel
  • Pistons: Aluminum
  • Weight (w/o pads: 800gr
  • Pad Shape: C
  • Pads Included: Yes
  • Offset: 22.5mm
  • Brake Fluid: DOT4



Fit the following bikes:

  • Honda CB1000R 2008-2018
  • Honda CBR1000RR 2004-2020
  • Honda CBR1000RR ABS 2008-2020
  • Honda CBR1000RR SP 2014-2020
  • Honda CBR600RR 2005-2012
  • Kawasaki Ninja ZX10R 2004-2015
  • Kawasaki Ninja ZX14 (ZZR1400) 2006-2015
  • Kawasaki Ninja ZX6R 2003-2020
  • Kawasaki Ninja ZX6R 636 2003-2020
  • Kawasaki Ninja ZX6RR 2003-2006
  • Kawasaki Z1000 2007-2018
  • Kawasaki Z1000 SX (Ninja 1000) 2011-2013
  • Kawasaki Z750R 2011-2012
  • Suzuki GSX 1300 B-King 2008-2013
  • Suzuki GSX-R1000 2003-2021
  • Suzuki GSX-R1300 Hayabusa 2008-2020,2022
  • Suzuki GSX-R600 2004-2021
  • Suzuki GSX-R750 2004-2021
  • Triumph Daytona 675 2006-2010
  • Triumph Speed Triple 1050 2004-2007,2012-2016
  • Yamaha MT-01 2005-2006
  • Yamaha MT-09/FZ-09 2014-2021
  • Yamaha YZF-R1 / S / M 2004-2006
  • Yamaha YZF-R6 2005-2016
