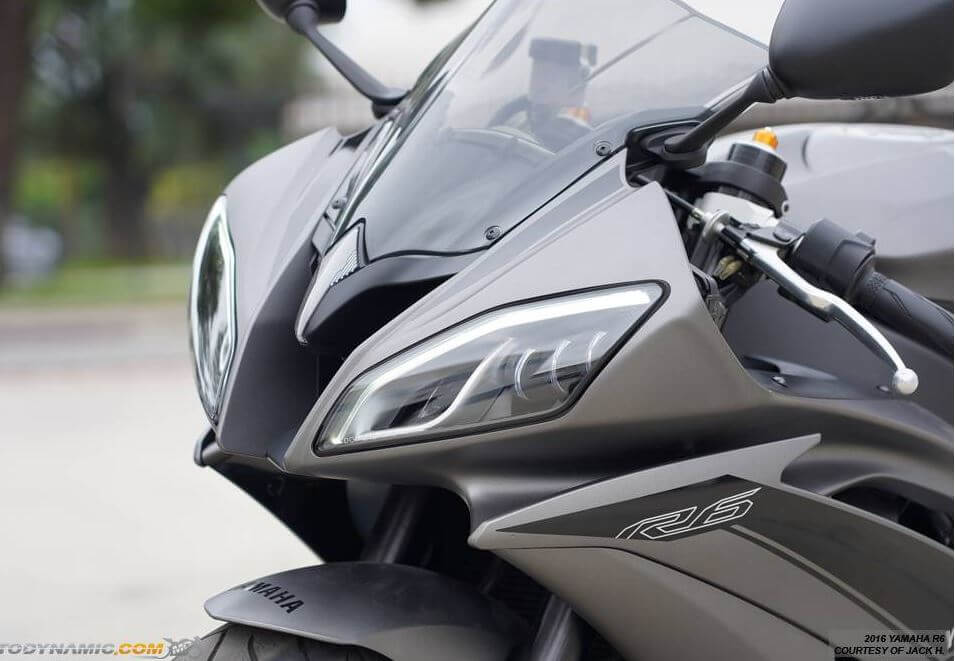

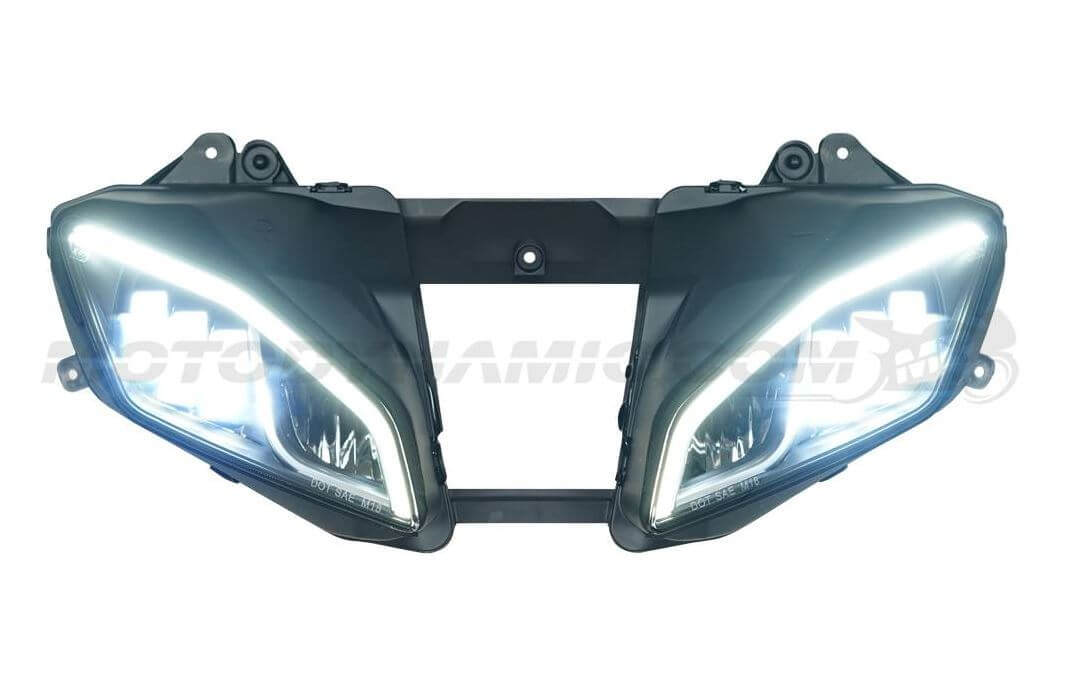

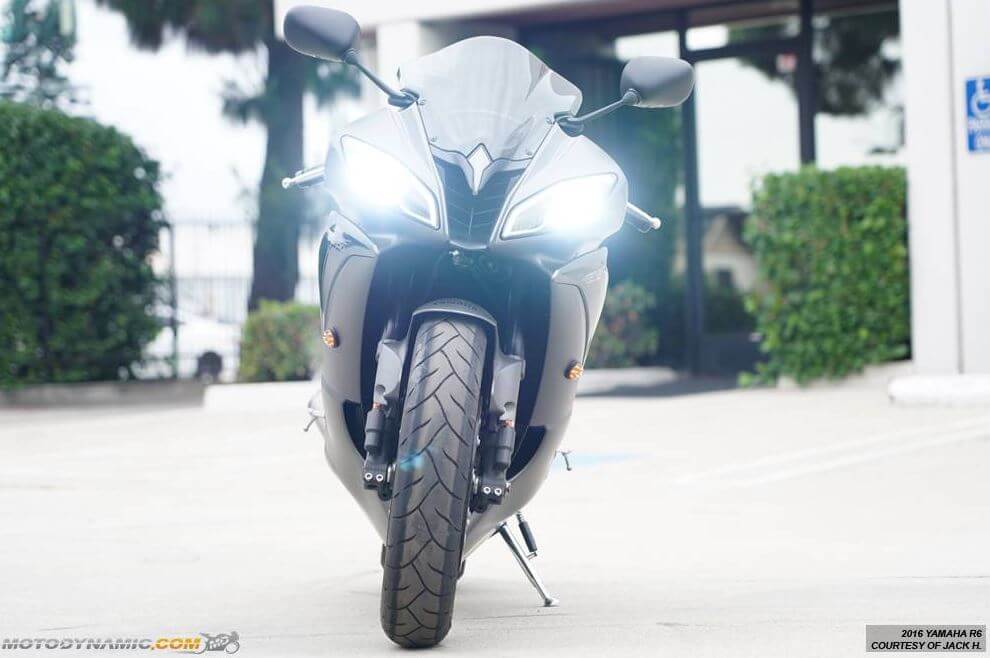

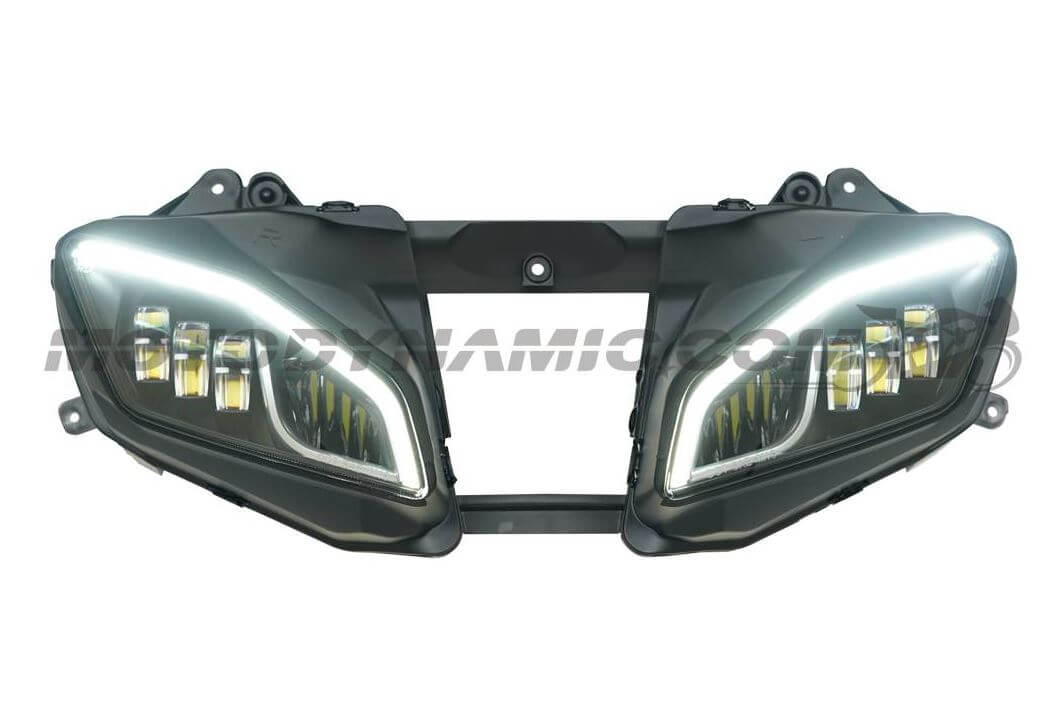

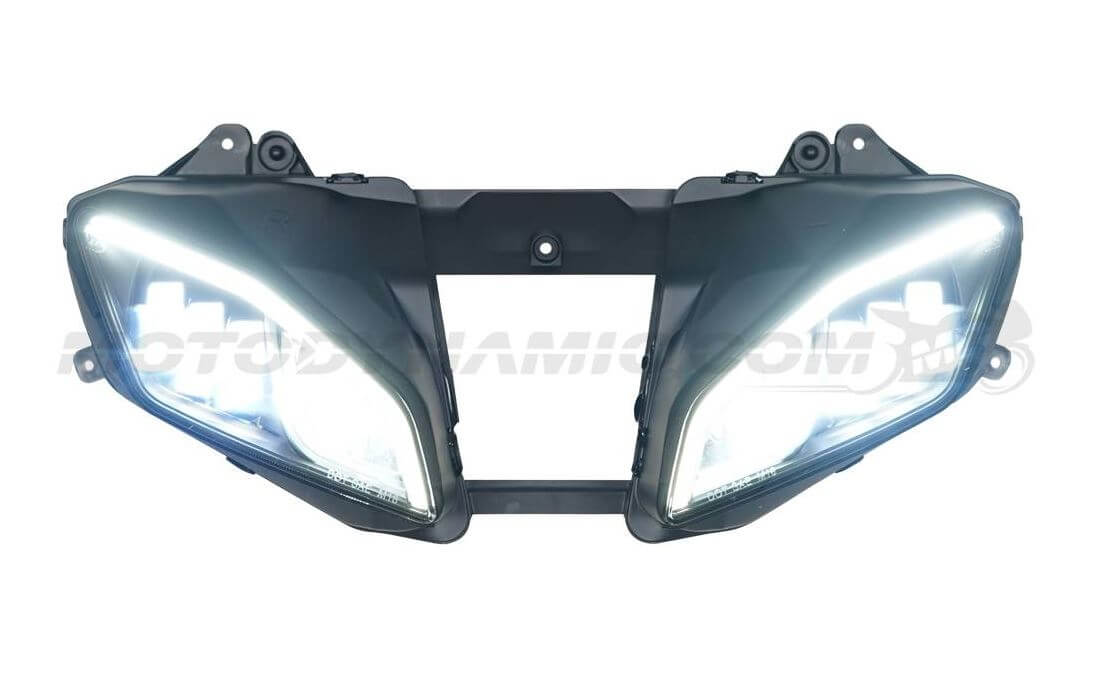

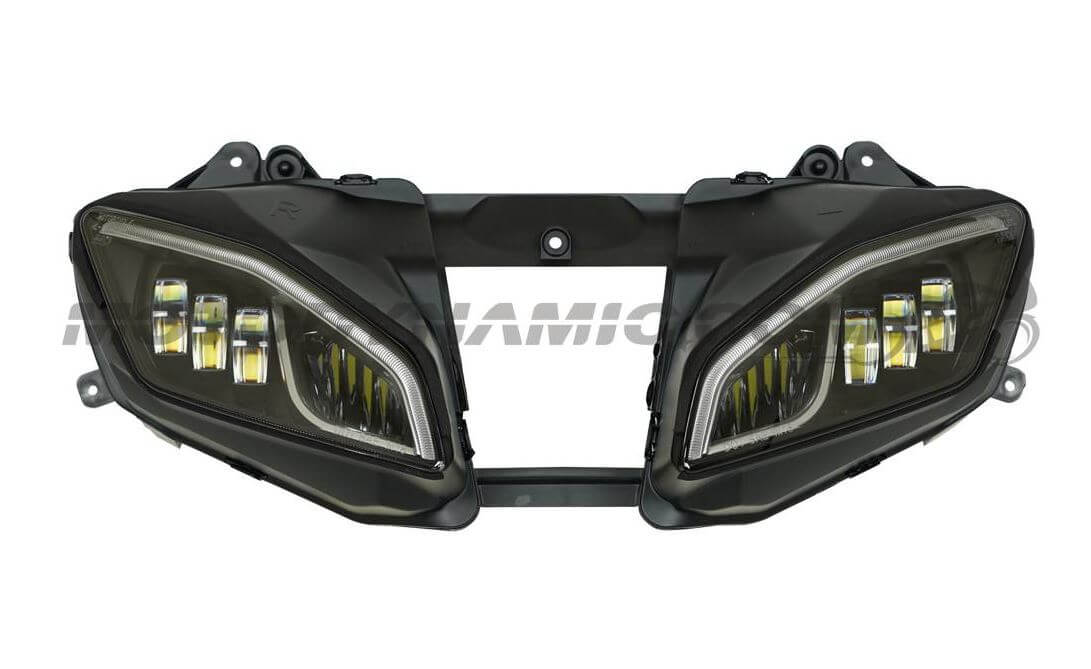

Motodynamic Full LED Projection Head Light Assembly with DRL '08-'16 Yamaha R6

Save 5%

$470.20 $494.95
Backorder, leaves warehouse in approx 3-4 weeks, availability may vary!

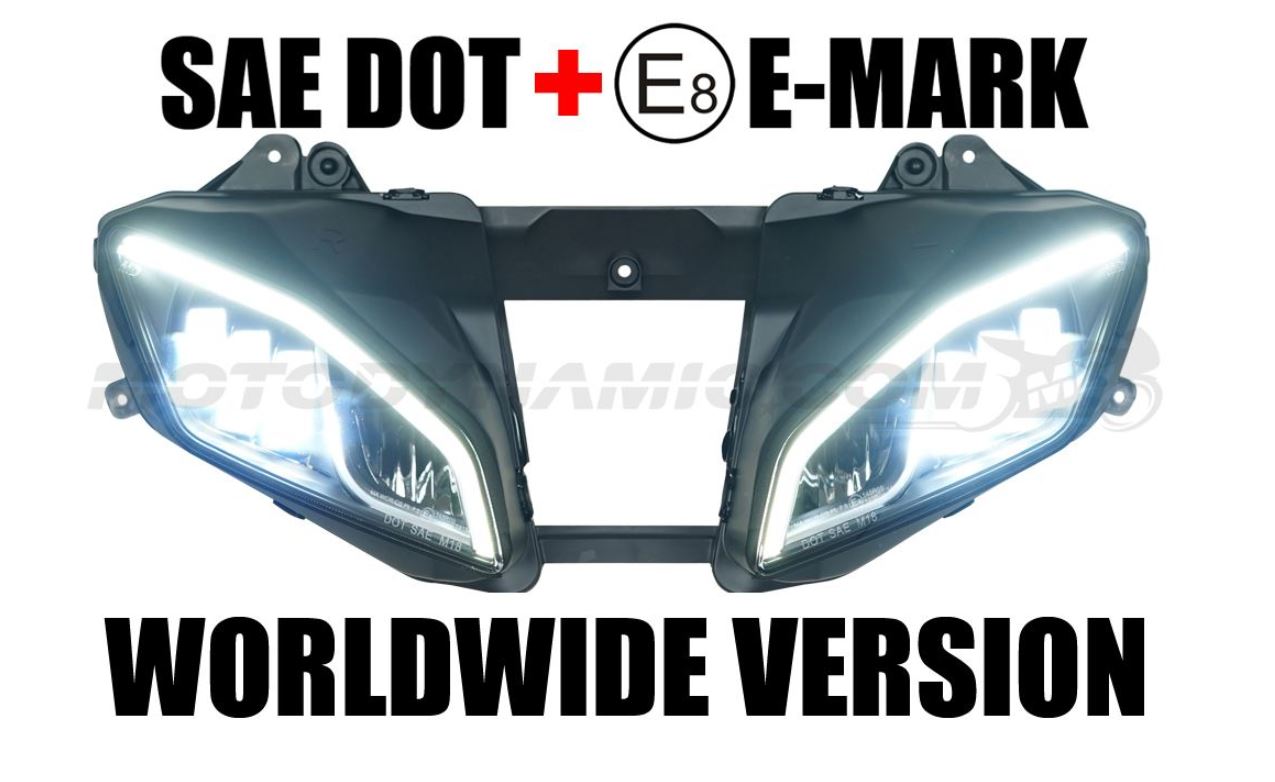

Motodynamic Full LED Projection Head Light Assembly with DRL '08-'16 Yamaha R6

This is for USA and similar market model Yamaha R6, for non-USA (see markets below) DRL hookup harness required to enable the LED lights bars to turn on.

The one and only aftermarket R6 head light that has been tested in a photometric laboratory to meet and exceed SAE/DOT requirements for Federal Motor Vehicle Safety Standards (FMVSS) 108 for motorcycle lighting. Don't be fooled into purchasing head lights that are not DOT approved or 'for off-road using only'. Those head lights have the incorrect focus on the beams and scatter the light everywhere, which may blind oncoming traffic and/or cause unsafe riding conditions.

Compatible with:

Yamaha YZF R6 2008-2016*

*Does NOT fit 2006-2007 models or 2006-2009 RS6 models

*USA and similar models that have DRL on the front turn signals. International models that do not support DRL on the front turns signals will require a separate harness to enable LED DRLs. More information and purchase details please contact us



• Dimensions: 20" x 8-3/4" x 9-3/4" (Width x Height x Depth)

• Weight: 6.00 lbs (2.72 kgs)


• Lens: PC

• Rear housing: PP

• LED heatsink: Aluminum

LED Specs:

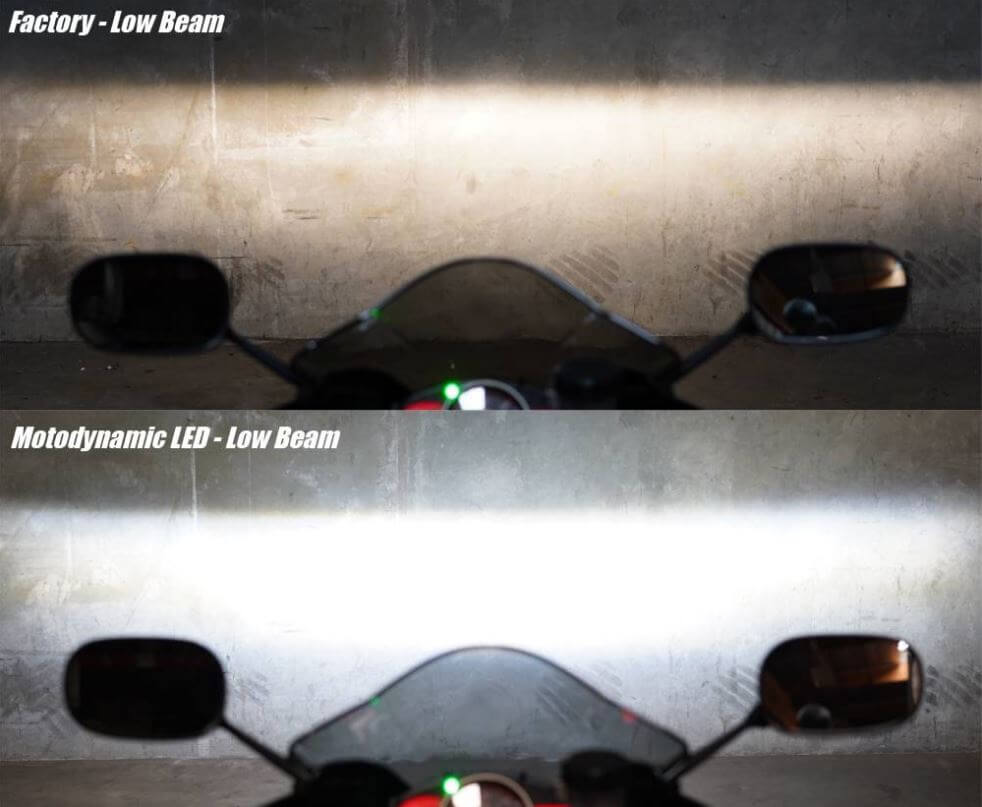

Low Beam (Projection):

• Wattage: 35W

• Current Draw: 2.67A @13.8V

• Lumens: 3500

• Color Temperature: 6500K +/- 3% Tolerance

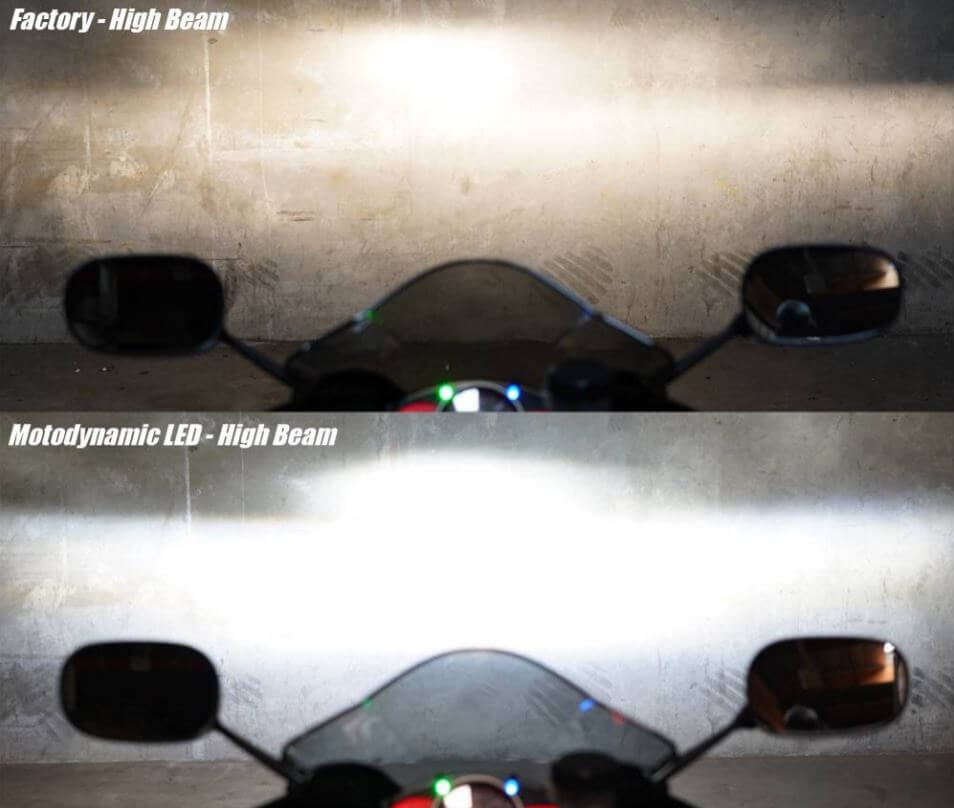

High Beam (Reflective):

• Wattage: 17.7W

• Current Draw: 1.34A @ 13.8V

• Lumens: 1970

• Color Temperature: 6100K +/- 3% Tolerance


Daytime Running Light (Light Bar):

• Wattage: 7.2W

• Current Draw: 0.62A @ 13.8V

• Color Temperature: 6000K


• 6 LED projector low beams, 2 LED reflective high beams and 2 LED DRL light bars

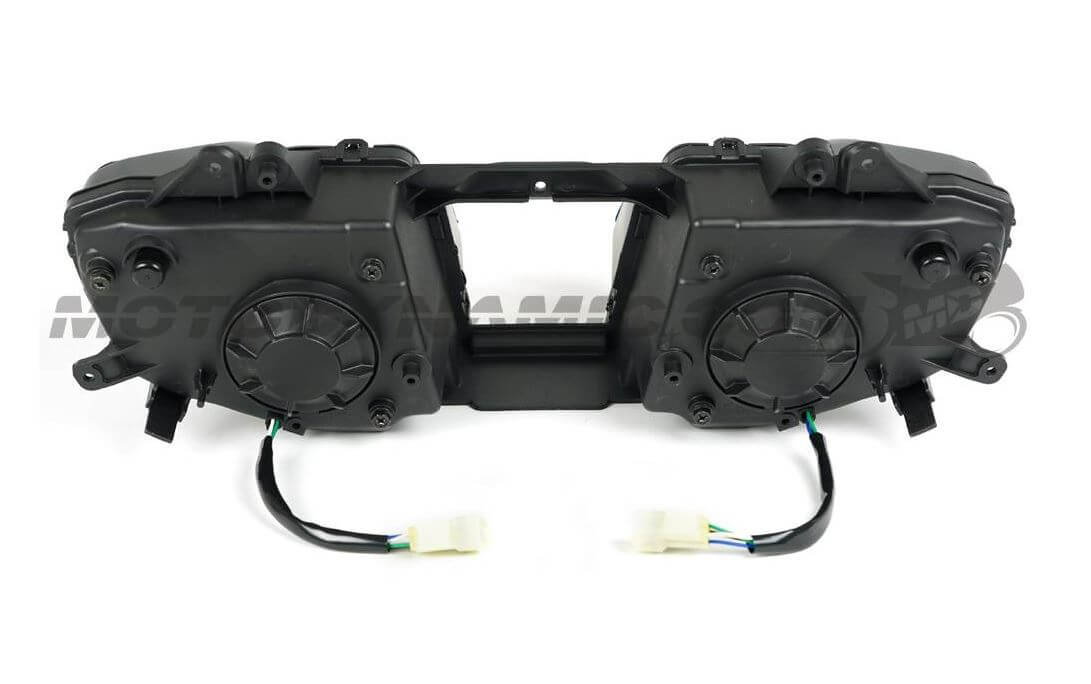

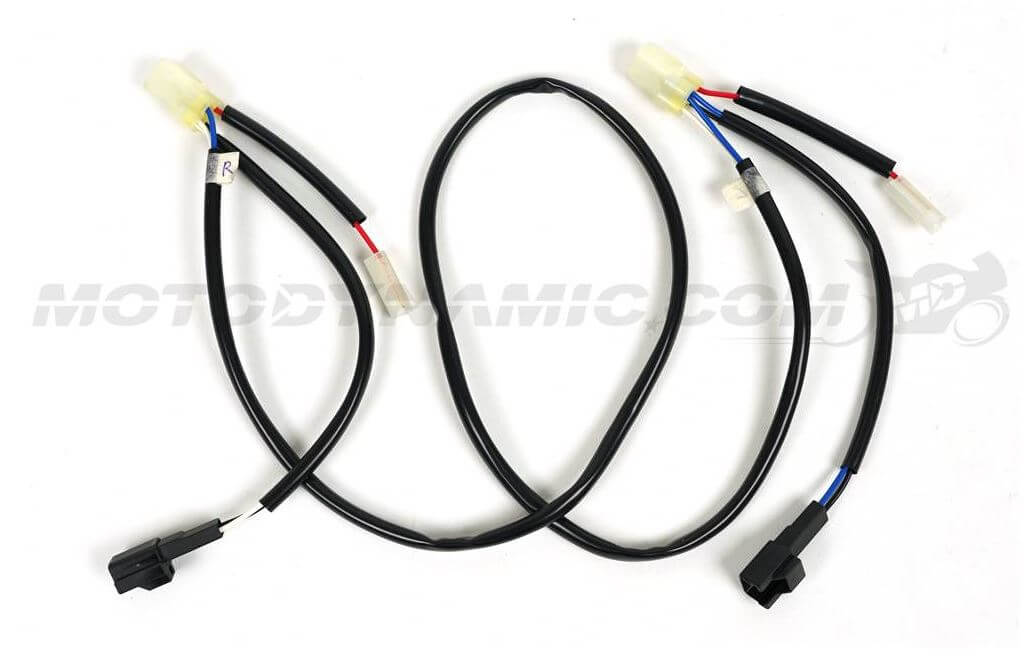

• 100% direct bolt-on and plug and play with included subharness, no modification needed

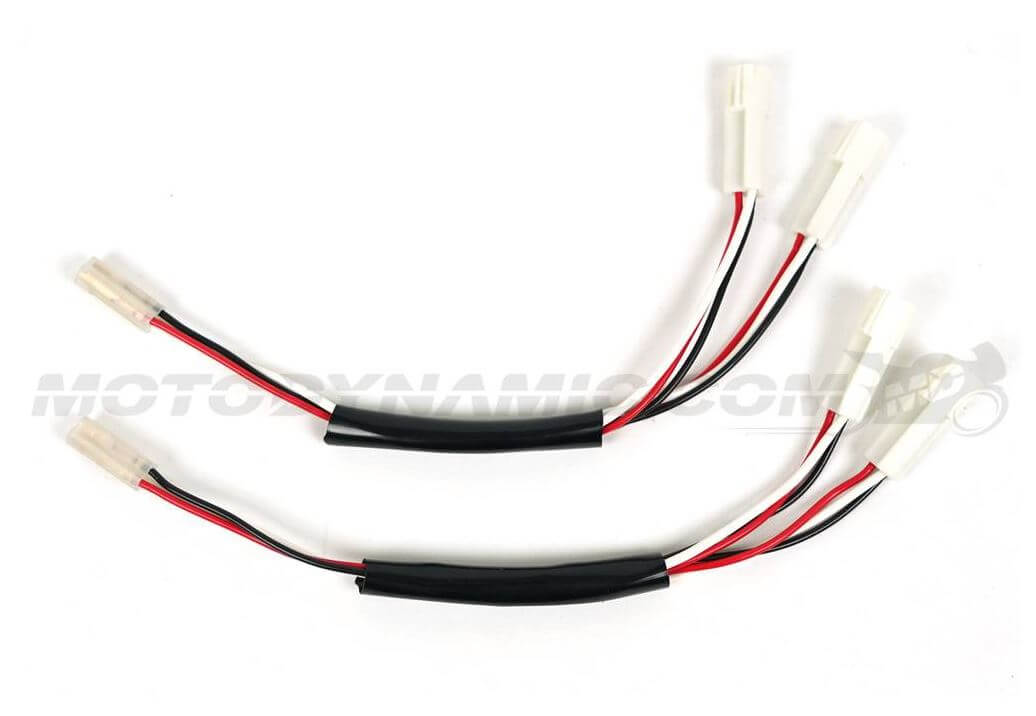

• Includes splitter harness to power up the DRLs off your front turn signals

• SAE/DOT compliant for use in all 50 states - compliant to FMVSS108

• Installation instructions included, knowledgeable installation highly recommended

• Warranty: 1 Year
