Motogadget Motoscope Pro Plug & Ride Digital Instrument '14-'16 BMW R9T
The motoscope pro BMW R9T only plug&ride instrument on the market
The CAN-Bus interface of the motoscope pro enables the complete display of all original functions (except settings for heated grips). The original plug connector for the original wiring loom makes the instrument a real plug&ride solution and a very easy installation.

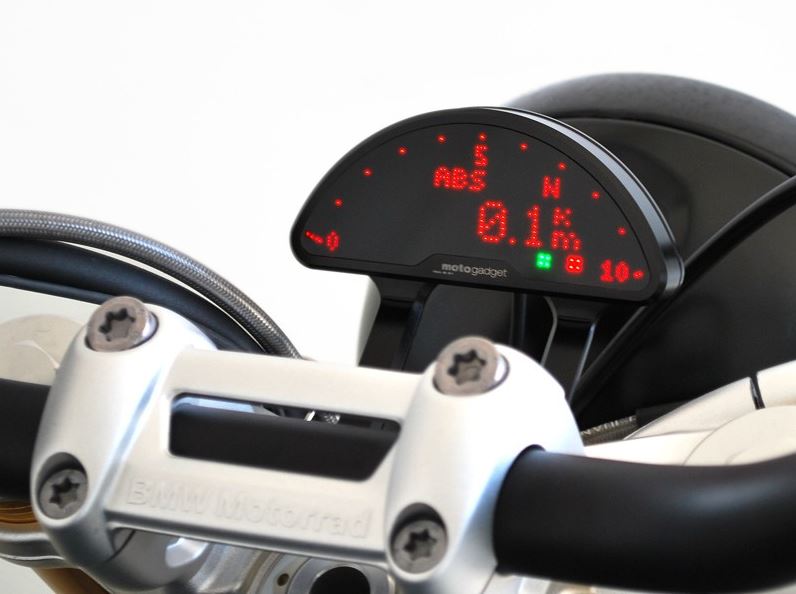

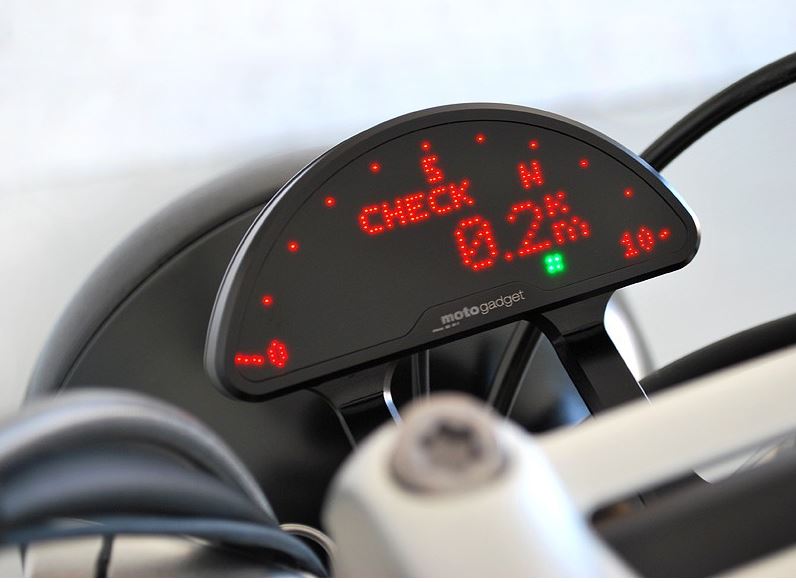

A LED matrix display enables an ultra thin housing design. 734 LEDs, controlled by a 16-bit RISC processor - create an almost rimless, self-illuminating display. It provides optimal readability even under conditions of direct sunlight. Automatic brightness control is a matter of course.
The rev-counter is displayed fully scalable via the analogue LED band with drag indicator function. Main and secondary display are user configurable. Another display section shows the gear currently engaged.
Four indicator lights are pre-installed and can be used for far more input signals.

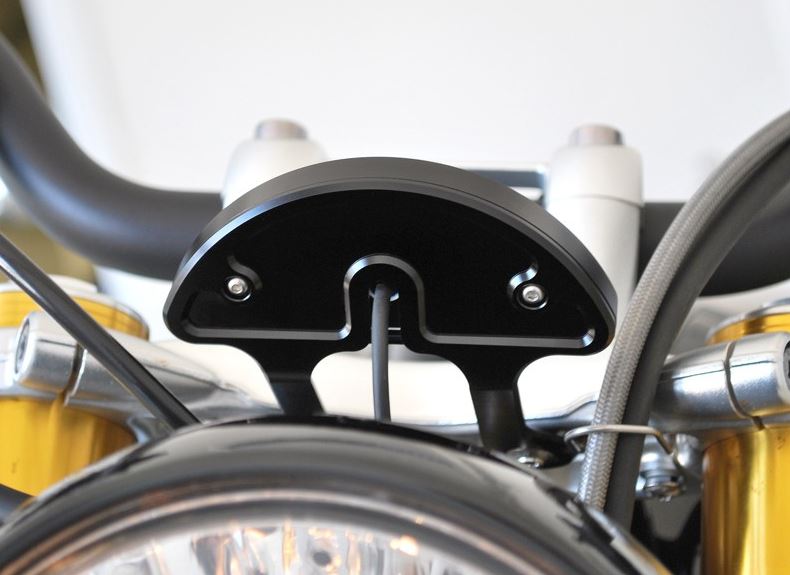

The billet aluminium casing is cnc-machined and is easily mounted by two backside threaded holes. The instrument is equipped with an ABE approval.
Parts delivered:
motoscope pro with ca. 70 cm connector cable, 2 stainless steel screws, detailed installation and operating instructions.
Specifications and Features
Please note: Touch sensor not included anymore, BMW Alarm System may not work with motoscope pro installed, Heated-Grip-Control may not work.
- Length, Height, Depth: 109 mm/ 47 mm/ 11 mm
- Weight: appr. 100 g
- Mounting: 2 x M3 threaded hole
- Power consumption during operation: max. 200 mA (load dependent)
- Power consumption in standby: 0.4 mA
- Operating voltage: 9 V - 15 V
- Operating temperature: -20°... +80°C
| Feature |
Measuring range |
Rev counter (LED bargraph)
|
0 – 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
|
Speedometer
|
0 – 350 km/h or mph |
Trip meter A
|
bis 999.9 km or mi |
Trip meter B
|
bis 999.9 km or mi |
| Total mileage (adjustable) |
bis 250000 km or mi |
| Operating hours/Service |
0 – 9999.5 h |
| Clock |
23:59 h/min |
| Timekeeping |
0 – 99:59:59 h/min/s |
| RPM count (numerical) |
0 – 20000 rpm |
| Adjustable RPM warning (gear shift light) |
0 – 20000 rpm |
| On-board voltage |
9 – 18 V |
| Low voltage warning |
Warning if below ca. 11V |
| Timekeeping 0 - 100 km/h or 0 - 60 mph |
0.00 – 30.59 sec. |
| Actual accelleration |
+/- 0.00 – 1.50 G
|
| Average speed |
0 – 350 km/h or mph |
| Max. speed |
0 – 350 km/h or mph |
| Max. RPM |
0 – 20000 rpm |
| Max. positive acceleration |
+1.50 G
|
| Max. negative acceleration |
- 1.50 G
|
| Gear display |
N, gear 1 - 6 |
Green control LED
|
Neutral (N) |
Green control LED
|
Turn indicator left/right |
blue control LED
|
High beam |
Red control LED
|
Miscellanious warning funktions like Check Engine, ABS
|
| Fuel/Reserve |
0 - 100% w/ low warning
|
